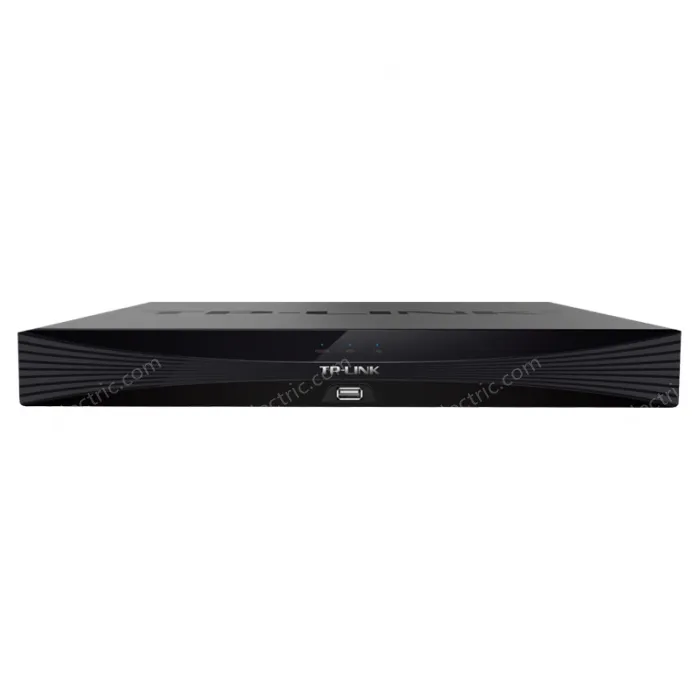

      H.265 PoE network Hard Disk Video Recorder (16PoE port /16 channels/dual disk)
      • Support H.265 video codec technology, the same conditions, half of the storage space
      • Support 16 camera access, up to 8 million pixel network camera
      • Port 16 supports standard PoE power supply and 802.3af/at power supply protocol
      • It supports 270 meters of long-distance PoE power supply, no switch is required, and safe wiring is more convenient
      • Support WEB remote preview/playback, mobile APP remote preview and recording
      • Support 2*10TB large hard disk, support external hard disk, video file backup is more convenient
      • It supports practical functions such as PTZ control, voice intercom, and intelligent retrieval and playback
      • It supports intelligent detection, which can realize a variety of intelligent events such as area intrusion and cross-border detection
      • It supports the ONVIF protocol and is compatible with mainstream brand IPC access in the market
      H.265 PoE network Hard Disk Video Recorder (16PoE port /16 channels/dual disk)

      Video parameters

      Network video input
      • Route 16
      Network video access bandwidth
      • 80Mbps
      Video output
      • 1 VGA, resolution: 1920x1080/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
      • 1 channel HDMI, resolution: 3840×2160 (4K)/30Hz, 1920x1080/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
      Video compression standards
      • H.264/H.265/H.265+
      Recording resolution
      • 8MP/5MP/4MP/3MP/1080P/UXGA/960P/72 0P/VGA/4CIF/DCIF/2CIF/CIF/QCIF

      Function

      Recording mode
      • Manual recording, timed recording, motion detection recording
      Multi-channel playback
      • 6×1080P
      Backup mode
      • USB storage device backup, network backup
      Special IPC adaptation
      • Binocular splicing, etc

      Interface

      Network protocols
      • IPv4/HTTP/NTP/DNS/ONVIF/RTSP/UPNP
      Platform access
      • It supports GB28281 and TUMS access
      SATA interface
      • 2 built-in SATA ports, support up to 10TB hard disk
      USB interface
      • 2 USB 2.0 ports (one on the front panel and one on the rear)
      VGA interface
      • 1 pc
      HDMI interface
      • 1 pc
      Network interfaces
      • 17 x 10/100Mbps adaptive RJ45 ports
      Light
      • 1 network status indicator
      • 1 power status indicator
      • 1 hard disk status indicator

      General parameters

      Power supply
      • 220V~50Hz
      PoE power supply protocol is supported
      • 802.3af/at
      Power supply
      • The maximum power supply of the whole machine is 200W/the maximum power supply of a single port is 30W
      Operating temperature
      • 0℃ ~ 40℃
      Operating humidity
      • 10% ~ 90%
      Size
      • 379mm×400mm×44mm
      Weight
      • 3.35KG (without hard disk)
      Fittings
      • Wired mouse, SATA cable, hard disk power cable
