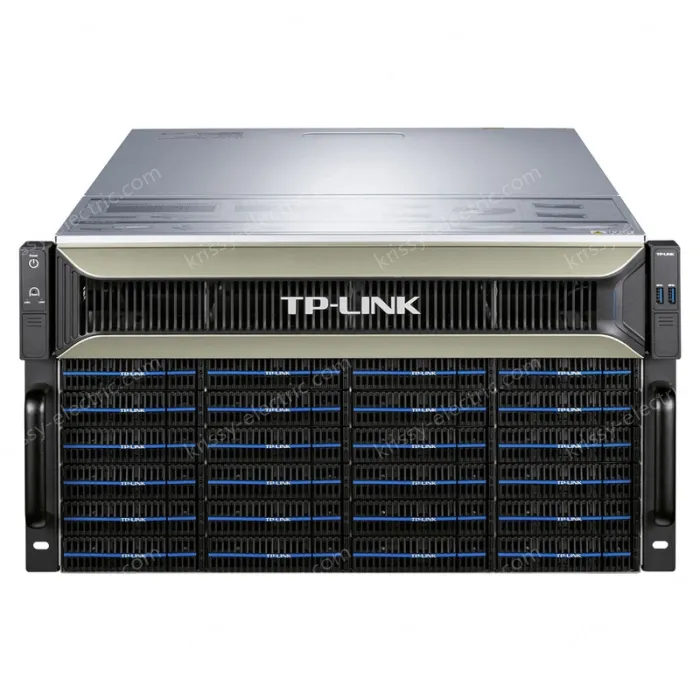

      Forty-eight bay storage servers
      • Forty-eight bay storage servers
      • Forty-eight bay storage servers
      • Forty-eight bay storage servers

      Forty-eight bay storage servers

      ★ ★ ★ ★ ★ 4.9 0 Reviews

      Model: TL-NVS7483

      Order No: TL-NVS7483

      SKU: 1721289534280425767

      Category: Storage management products

      Brand: TP-LINK

      Condition: New Sealed Under Guarantee

      Size: 682.00mm, 489.40mm, 266.00mm; Diam:0.00cm

      Weight: 27.31kg

      Product Selection Engineer: Huankanheng

      Leading

      Shipping

      QTY
      - +

      Customer Service Guarantee

      100% secure payment

      Quality Guarantee

      No Reason Returns

      Are you a Supplier?

      Join Us in Delivering Excellence Worldwide

      Apply to join

      You May Also Like

      Selling List

      Description Reviews
      Forty-eight bay storage servers
      • High-spec processor, Intel multi-core processor, high performance
      • Massive storage, supporting 48 bays of large-capacity storage space, a single disk supports up to 16TB
      • Dual storage of files/videos, security/NAS management
      • The three modes of fault tolerance, multiple access, and aggregation can easily run up to 2400 Mbit/s bandwidth
      • Ultra-high bandwidth, up to 1024 channels of 2Mbps video streams
      • RAID disk array, support RAID0/RAID1/RAID5/RAID6/RAID 10 modes
      • Multiple operation modes, stand-alone HDMI interface output, PC access, VMS remote management, to meet various scenarios
      • Universal file storage, build a data center, and enable data sharing
      • Multiple access methods, FTP/SMB/ISCSI, and diversified file access
      Forty-eight bay storage servers

      Specifications

      Hardware parameters
      • Processor: Intel multi-core processor
      • RAM: 8GB
      • Number of hard drive bays: 48
      • Maximum hard disk capacity: 16TB
      • Hot-swappable: Yes
      Interface
      • Video output interface: 2HDMI
      • Console port: Yes, 1 x RJ45
      • AUDIO INPUT AND OUTPUT INTERFACE: YES, 3.5MM*2
      • Alarm input and output interface: none
      • RJ45 network port: 1 x 10M/100M/1000M/2.5Gbps adaptive RJ45 interface + 2 x 10/100/1000Mbps adaptive RJ45 interface
      • USB interface: 2*USB 2.0 (front) + 2*USB 3.0 (rear)
      • Power connectors: 2 pcs
      Software parameters
      • Network access bandwidth: 2400Mbps
      • Array: RAID0/RAID1/RAID5/RAID6/RAID10
      • Protocol: IPv4/DNS/ONVIF/SMB/FTP/ISCSI/RTSP/NTP/HTTP/TCP/VMS management
      Video parameters
      • Maximum number of video access channels: 1024 channels
      • Video compression standard: H.264/H.265/H.265+
      • Video resolution: 8MP/5MP/4MP/3MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF
      File parameters
      • Maximum number of folders: 256
      • Maximum number of users/roles: 1000/100
      • Maximum number of LUNs: 64
      • Maximum number of ISCSI: 16
      • File management protocols: SMB/FTP/ISCSI
      General parameters
      • Input power: 100-240V~10A-5A 60/50Hz
      • Power supply: 800W*2 (redundant power supply)
      • Maximum power consumption: 550W
      • Operating temperature: 0°C~40°C
      • Working humidity: 10%~90%RH non-condensing
      • WEIGHT: 27.31KG
      • Size: 682mm× 489.4mm×266mm
