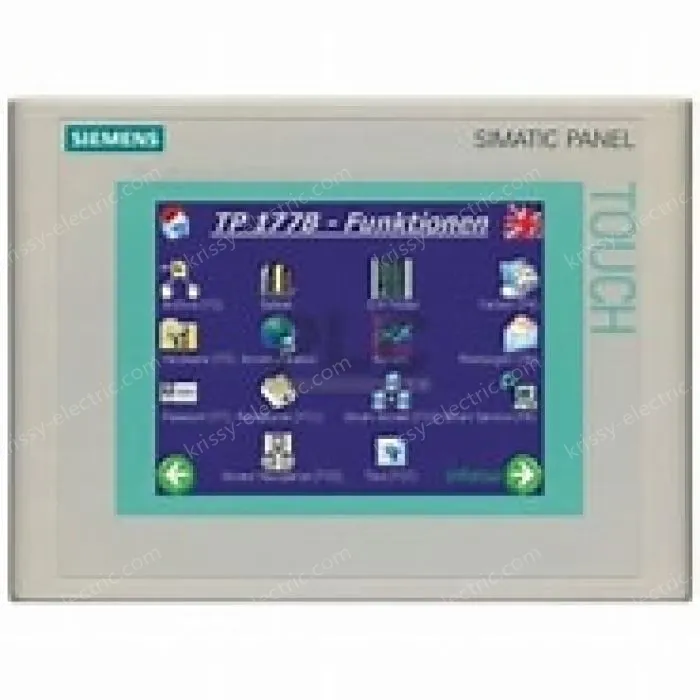

      6AV6642-0BA01-1AX1 TP177B 6" PN/DP COLOR
      Artikelnummer6AV6642-0BA01-1AX1
      SIMATIC TP177B 6" PN/DP STN 265 COLOR-DISPLAY MPI-/PROFIBUS-DP - PROTOCOL RS485-/RS422-/USB - INTERFACE ETHERNET10/100 INTERFACE PRINTER - INTERFACE SLOT FOR MM-CARD CONFIGURABLE WITH WINCC FLEXIBLE 2005 ******************************* FOR THIS PRODUCT A DELIVERY STOP WILL BE DECLARED FROM OCTOBER 1ST, 2014. INFORMATION ABOUT SUCCESSOR SEE SIMATIC UPDATE ID: 62977695 FOR FURTHER QUESTIONS PLEASE APPROACH YOUR SIEMENS CONTACT PERSON.
      General information
      Customer-specific configurationYes
      Display
      Design of displaySTN
      Screen diagonal5.7 in
      Size5.7" (120 mm x 90 mm)
      Display typeSTN, 256 colors
      Color typeColors
      Resolution (pixels)
      ● Horizontal image resolution320
      ● Vertical image resolution240
      ● Resolution (WxH in pixel)320 x 240
      Backlighting
      ● MTBF backlighting (at 25 °C)50 000 h
      Control elements
      Control elementsTouch screen
      Operating optionsTouch
      Connection for mouse/keyboard/barcode readerUSB / USB / USB
      Keyboard
      ● System keysYes
      ● Numeric/alphabetical inputYes / Yes
      — hexadecimal keyboardYes
      ● Multi-key operationNo
      Supply voltage
      Type of supply voltageDC
      Input current
      Rated current0.24 A
      Inrush current A²s0.5 A²·s
      Processor
      ProcessorARM, 200 MHz
      Memory
      Usable memory for user data2 048 kbyte
      Time of day
      Clock
      ● TypeHardware clock, synchronizable, no battery backup
      ● Hardware clock (real-time clock)No
      ● Software clockYes
      ● Battery-backedNo
      ● SynchronizableYes
      Interfaces
      InterfacesRS232 optional, 1 x RS422, 1 x RS485, 1 x Ethernet (RJ45) (max. 12 Mbit/s)
      Number of RS 485 interfaces1
      ● Transmission rate, max.12 Mbit/s
      USB port1 x USB
      PC card slotNo
      CF card slotNo
      Multimedia card/SD card slotcombined, from E-status 016 in connection with WinCC flexible 2008 SP1, MMC max. 128 MB / SD max. 512 MB
      Special interfacesNo
      Industrial Ethernet
      ● Industrial Ethernet interface1 x Ethernet (RJ45)
      ● Industrial Ethernet status LED1
      Protocols
      Protocols (terminal link)
      ● Sm@rtServiceYes
      Degree and class of protection
      FrontIP65, NEMA 4x, NEMA 12 (when installed)
      IP (at the front)IP65
      IP (rear)IP20
      Standards, approvals, certificates
      CertificationsCE, GL, ABS, BV, DNV, LRS, FM Class I Div. 2, UL, CSA, cULus, EX Zone 2, EX Zone 22, C-TICK, NEMA 4x, NEMA 12
      cULusYes
      EAC (formerly Gost-R)No
      Suitable for safety functionsNo
      Marine approval
      ● Germanischer Lloyd (GL)Yes
      ● American Bureau of Shipping (ABS)Yes
      ● Bureau Veritas (BV)Yes
      ● Det Norske Veritas (DNV)Yes
      ● Lloyds Register of Shipping (LRS)Yes
      ● Polski Rejestr Statkow (PRS)No
      Use in hazardous areas
      ● EX zone 2Yes
      ● EX zone 22Yes
      ● FM Class I Division 2Yes
      Ambient conditions
      Mounting positionvertical
      maximum permissible angle of inclination without external ventilation+/- 35 °
      Storage/transport temperature
      ● Transport, storage-20 °C to +60 °C
      Relative humidity
      ● Operation, max.90 %
      Operating systems
      Operating systemWindows CE
      Configuration
      Message indicatorYes
      With alarm logging system (incl. buffer and acknowledgment)Yes
      Process value display (output)Yes
      Process value default (input) possibleYes
      Recipe administrationYes
      Configuration software
      ● STEP 7 Basic (TIA Portal)No
      ● STEP 7 Professional (TIA Portal)No
      ● WinCC flexible CompactYes
      ● WinCC flexible StandardYes
      ● WinCC flexible AdvancedYes
      ● WinCC Basic (TIA Portal)No
      ● WinCC Comfort (TIA Portal)Yes
      ● WinCC Advanced (TIA Portal)Yes
      ● WinCC Professional (TIA Portal)Yes
      ● Configuration toolWinCC flexible Compact Version 2005 or higher (to be ordered separately)
      ● 2nd configuration kitWinCC flexible Compact
      — VersionVersion 2005
      — Configuration toolWinCC flexible
      — TypeCompact
      Languages
      Online languages
      ● Number of online/runtime languages5
      Languages
      ● Languages per project32
      Functionality under WinCC (TIA Portal)
      LibrariesYes
      Task plannerYes
      Help systemYes
      ● Number of characters per info text70
      Message system
      ● Number of alarm classes32
      ● Number of messages2 000
      ● Bit messagesYes
      ● Analog messagesYes
      ● Number of bit messages2 000
      ● Number of analog messages50
      ● Telegram message procedure Alarm SNo
      ● System messages HMIYes
      ● System messages PLCYes
      ● System messages, other (SIMATIC S7, Sinumerik, Simotion, etc.)No
      ● Message length (in characters)80
      ● Lines1
      ● Number of process values per message8
      ● Acknowledgment groups99
      ● Message indicatorYes
      ● Acoustic feedbackNo
      ● First/last valueYes
      Recipe administration
      ● Number of recipes100
      ● Data records per recipe200
      ● Entries per data record200
      ● Recipe memory32 KB integrated Flash, expandable
      Variables
      ● Number of variables per device1 000
      ● Number of variables per screen50
      ● Number of variables1 000
      ● Initial values1 000
      ● Limit valuesYes
      ● MultiplexingYes
      ● StructsNo
      ● Type Date & Time1 000
      Images
      ● Number of configurable images500
      ● Permanent window/defaultYes
      ● Start screen configurableYes
      ● Image selection by PLCYes
      ● Image number in the PLCYes
      Image objects
      ● Text objects2,500 text elements
      ● Fields per image50
      ● Date/time fields30
      ● Index of screen contextNo
      ● ReturnYes
      ● Graphics objectBit maps, icons, icon (full-screen), vector graphics
      — Icons500
      — Icon (full screen)50
      Complex image objects
      ● Status/controlWith SIMATIC S7
      ● dynamic objectsDiagrams, bar graphs, sliders, analog display, invisible buttons
      — Number of objects per project500
      — Number per image5
      ● MethodsTrend
      ● Limit value linesYes
      ● Number of bars per chart5
      ● Limit value linesYes
      ● alphanumeric fields1 000
      ● alphanumeric fields per image100
      ● numerical fields1 000
      ● numerical fields per image100
      ● Password errors1 000
      ● Number of slides per image0
      ● Number of analog indicators per image0
      ● Number of visible switches per project1 000
      ● visible switches per image100
      ● hidden switches per image100
      ● Number of status switches per project1 000
      ● Button status switches per image100
      ● Number of selector switches per project1 000
      ● Selector switches per image100
      ● Number of decade switches per project0
      ● Decade switches per image0
      ● Number of signal lamps per project1 000
      ● Signal lamps per image100
      Attributes for dynamic objects
      ● Color changeYes
      ● X/Y movementYes
      ● HideYes
      ● Angle of turnNo
      Lists
      ● Number of text lists per project300
      ● Number of text lists per image10
      ● Number of entries per text list30
      ● Number of graphics lists per project100
      ● Number of graphic lists per image10
      ● Number of entries per graphics list30
      Security
      ● Number of user groups50
      ● Number of user rights32
      ● Password export/importYes
      Data carrier support
      ● PC cardNo
      ● CF cardNo
      Logging through printer
      ● Recording/PrintingAlarms, report (shift report), color print, hardcopy
      Transfer (upload/download)
      ● Transfer of configurationMPI/PROFIBUS DP, serial, USB, Ethernet, by means of external storage medium, automatic transfer recognition
      Process coupling
      ● Connection to controllerS5, S7-200, S7-300/400, Win AC, PC (TCP/IP), SINUMERIK, SIMOTION, Allen Bradley (DF1), Mitsubishi (FX), Telemecanique (ADJUST), Modicon (Modbus), further non-Siemens drivers, see chapter "System interfaces"
      ● S7-1200Yes
      ● S7-1500No
      ● S7-200Yes
      — PPI (point-to-point)Yes
      — PPI networkNo
      — MPIYes
      — PROFIBUS DPYes
      — EthernetYes
      ● S7-300/400Yes
      — MPIYes
      — PROFIBUS DPYes
      — PROFINETYes
      ● S5Yes; only PROFIBUS DP
      — serialNo
      — PROFIBUS DPYes
      ● TI 505No
      ● Allen Bradley (DF1)Yes
      ● Allen Bradley (DF485)Yes
      ● Mitsubishi (FX)Yes
      ● Telemechanique (ADJUST)No
      ● Telemecanique (Uni-Telway)Yes; Only in combination with WinCC flexible
      ● OMRON (LINK/Multilink)Yes
      ● Modicon (Modbus)Yes
      Functions
      ● Key repeatNo
      ● TAB sequenceYes
      ● Calculating functionsYes
      ● AnimateYes
      ● Menu tree editorYes
      ● Unit switchoverNo
      Service tools/configuration aids
      ● Clean screenYes
      ● Touch calibrationYes
      ● Backup/restoreYes
      ● SimulationYes
      ● Device switchoverYes
      ● Delta transferYes
      ● Monitoring function for battery and memoryNo
      ● Trace (operation archive)No
      Expandability/openness
      ● Open Platform ProgramYes
      I/O / Options
      I/O devicesPrinter
      ● MultiMediaCardYes
      Additional software components loadableYes
      Dimensions
      Width of the housing front212 mm
      Height of housing front156 mm
      Mounting cutout/device depth (W x H x T)198 mm x 142 mm / 44 mm device depth
      Weights
      Weight (without packaging)0.8 kg
      other
      free hotlineYes
      Warranty period1 y
